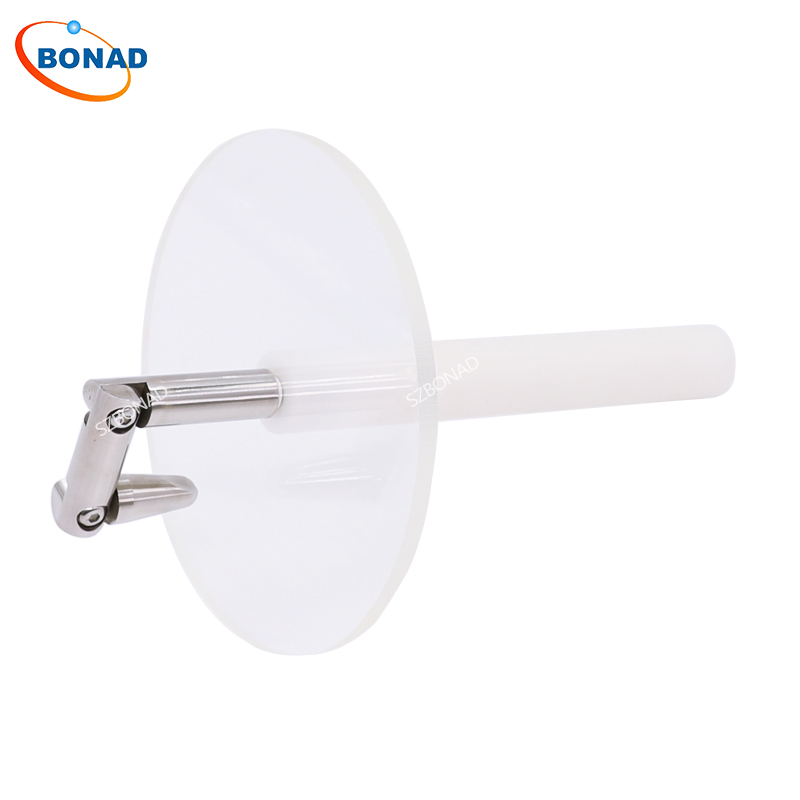

Jointed Test Finger Probe with Diameter 125 mm Circular Stop Face

Product Description：Jointed Test Finger Probe with Diameter 125 mm Circular Stop FaceModel:BND-BD125This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. For blenders, it has a circular stop face with a diameter of 125 mm, the distance between the tip of the test finger and the stop face being 100 mm.

Test Finger Probe with Diameter 50 mm Circular Stop Face

IEC/EN 60950 12mm Hemispherical Hard Rod BND-TB12

Description

Product Description：

Jointed Test Finger Probe with Diameter 125 mm Circular Stop Face

Model:BND-BD125

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. For blenders, it has a circular stop face with a diameter of 125 mm, the distance between the tip of the test finger and the stop face being 100 mm.

Standard:

IEC60335-2-14|EN60335-2-14|GB4706.30 IEC60335-2-14|EN60335-2-14

Specification:

Test finger length	100 mm
Curved length	30 / 30 / 40 mm
Material	stainless steel and nylon
Dam-board Diameter	125mm
Reference	IEC 60335-2-14 20.2
